Optimising cutting tool insert performance with the Jaguar automatic wet blasting machine...

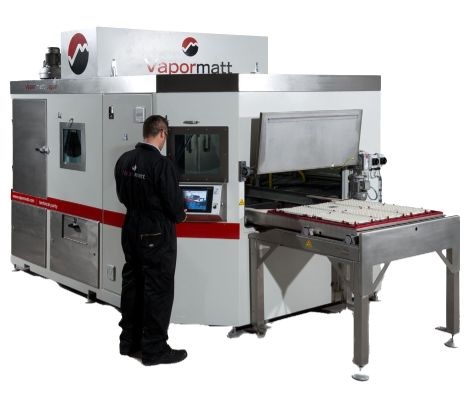

In precision manufacturing, surface preparation plays a critical role in tool performance, coating adhesion, and overall product quality. The Vapormatt Jaguar is a wet blasting system specifically designed to meet these demands in high-volume carbide insert environments.

Key technical highlights:

• Controlled edge preparation: Capable of achieving homogenous edge radii up to 70 µm within tight tolerances (+/-10%, or even +/-5 µm in some cases). This level of consistency is vital for optimising PVD/CVD coating performance on cutting tools.

• Recipe-driven process control: An intuitive colour HMI enables operators to create, store, and manage blast and rinse recipes — ensuring repeatability across different batches and simplifying process changeovers.

• Multi-axis, multi-gun blast assembly: The Jaguar uses 8 boron carbide nozzles mounted on a blast head with programmable Y and Z-axis motion, while components move on an X-axis cassette. This ensures uniform surface treatment across complex geometries.

• Advanced slurry and media management: Integrated systems for slurry concentration monitoring, abrasive separation, and automatic dosing maintain consistent media quality and process conditions — essential for achieving reproducible results.

• Process data logging and diagnostics: Industry 4.0-ready, the Jaguar supports remote diagnostics, MES integration, barcode recipe selection, and blast airflow monitoring. This not only enhances uptime but also contributes to process traceability and continuous improvement efforts.

Applications:

• Edge preparation and de-burring
• Surface activation for PVD/CVD coating
• Cleaning of carbide and HSS inserts
• Post-coating finishing and peening

For manufacturers focused on precision, repeatability, and process control in surface engineering, systems like the Jaguar illustrate how integrated wet blasting technology is evolving to meet modern production challenges.
